Monitor installation
.integrated electric fire monitor can be directly installed in the distribution box or cabinet Split monitor can be installed in the distribution box (cabinet) in the door on the embedded installation, in order to observe and operate
.Install Notes
a) lines with line and neutral line must pass through detector (split), and the protection earth (PE) can not pass through. Line through the detector must be independent, notAnd protected areas other than the line of "zero" or have any electrical connections, zero (N or PEN) are not allowed to repeat ground
b) monitors and detectors to be installed, it will return the detector cable into the monitor dual core leakage signal input
c) Insert the temperature probe monitors the temperature input interface access
d) For alarm cut off the power, you need to monitor "tripping out" terminal (passive switch signal) connected to the circuit breaker shunt release, and circuit breakersAux return by then to monitor the "state of return" terminal
e) monitor for the on-site power distribution box (cabinet) within the supply voltage is AC220VNote elements Leakage monitoring and engineering should be the correct way of matching the power system grounding protection TN-C earthing system is not installed in leakage control node, For the installation of ground protection must be the way the system transformed into TN-CS system or local TT system TN-CS earthing system, the electrical fire control system only allows configuration of residual current detection line and N lines in the PE after the separation of parts
For multi-loop control node with a temperature measurement function, because the same detector under the control monitor all installed in the same power distribution box, under normal circumstancesMonitor the temperature with a4-way acquisition functions, you can monitor the temperature status of main circuit distribution box, each sub-circuit outlet of the multi-loop detectors also have a three-way temperature acquisition
Split the main function of detectcn
.FLK-C1 single loop detector (FLK-C1一口) Detection of single-loop signal leakage With the series of single-loop control uses Shielded communication lines and monitor communications Special high-quality core material to ensure detection accuracy One口、aid operating current 100一that 100A (included) 225一that 225A (included) 400一that 400A (included) 630一that 630A (included) 800一that f300A (included) 1250一said the 1250A (with) the following 1600一said the 1(00A (withl the followine
Accordin}z to the woxklng envixonment of the cttxrent detector probe specific model chosen. 2m for each detectox are standnxd four-core shielded cable used for dual-monitor connection
.FLK-C2 multi-loop detector (FLK-C2一口) Multi-loop signal leakage detection and temperature measurement signals With The series of multi-loop control uses Shielded communication lines and monitor connected Special high-quality core material to insure detection accuracy Monitoring data (leakage, temperature) superposition input Intelligent multi-loop address recognition Back to issue multi-detector tripping signal routing Multi-loop detector string Access Monitor A light detector warning signal and tripping tripping state Each detector temperature were detected with a three-way
One口said operating current 100一that 100A (included) 22S一that 22}A (included) 400一that 4U0A (included) 630一that 630A (included) 800一that BUUA (included) 1250一said the 123UA (with) the following 1600一 said the 1600A (with) the following
According to the working environment of the current detector probe specific model chosen As the cabinet can not know the distance between detectors and counters we do not provide the data lines. The accessLine described as follows Multi-Loon detector navel terminal block shown in Fieure
Communication Interface: Implementation and the main circuit monitor communications and are subject to call
Address Code: DIP switches, distribution loop address 0000一1111
Release:Achieving breaker tripping
Status:Acqtrisition circuit breaker
Check whether the normal power, access DC/AC220V power, the time monitor the work of the power indicator light, LCD screen should display properly By "self-test" button, check the monitor lights, liquid crystal display stare, and alarm sound are normal. Press the "self test" button, the LCD display will showall digital points, to check the screen status display
The "test" button, the analog input signal 1000mA leakage, equipment will achieve sound and light alarm, check whether the device is able to properly police: by "Noise" button, checkCheck whether the silencing success: click the "reset" button, the device reset Three-way temperature signal acquisition: matching FLK-C2

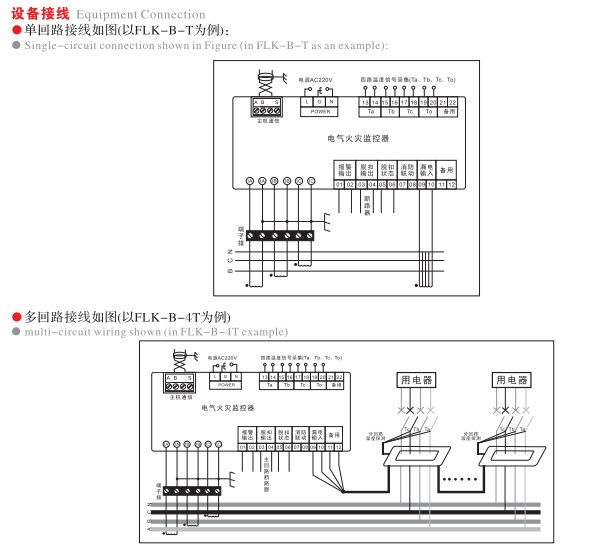

FLK-C2 multi-loop detector w川ng shown:
|
