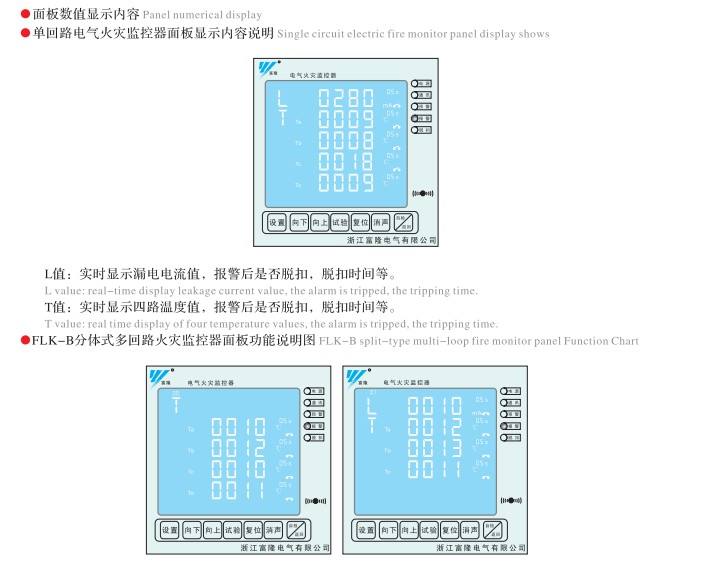

Panel numerical display
The first line shows the node loop control code, such as the distribution outlet OZ that the second loop code, if the monitorDetector installed in the distribution of nodes into the line of the main switch box office, loop code that is used 00
L value: real-time display outlet circuit leakage current value, the alarm is tripped, the tripping time
T value: real time display of three-way multi-loop detector temperature. After the alarm is tripped, the tripping time
The principle and structure of the product characteristics
Monitor through the built-in processor chip and electrical fire detector acquisition and processing module for bi-directional data exchange and functions in accordance with procedures designed to drive liquid crystal display And acousto-optic devices on the panel to complete the circuit to monitor the working status of the various instructions, various basic parameters and the dynamic power of real-time display, alarm and fault alarm and pre- Fault tripping control value output and other tasks. Running monitor, it is also achieved through the operation buttons multiple point parameters of the inspection. Shi Yong. self mute and reset and other necessary Monitoring function
Integrated electric fire monitor is off line actuator (automatic switch) and monitor into one overall control of all keys are in the Monitor panel straight Then set the parameters to use such items as inspection operations
Split electric fire monitors embedded in the structure for the panel meters, using a common form factor and external jack for line in the distribution box (cabinet) and easy to install door Operation and monitoring |
